Gold Plating Multilayer Pinted Circuit Boards Standalone Access Controller Audio Extractor

Brand Name : KAZ

Model Number : KAZA-099

Certification : UL&ROHS

Place of Origin : China

MOQ : 1 Unit

Price : 0.1-20 USD / Unit

Payment Terms : T/T, Western Union, MoneyGram, L/C, D/A

Supply Ability : 2000 m2 / Month

Delivery Time : 5-14 days

Packaging Details : vacuum package

Layer Count : 2 ` 30 Layers

Max Board Size : 600 mm x 1200 mm

Base Material for PCB : FR4, CEM-1, TACONIC, Aluminium, High Tg Material, High Frequence ROGERS ,TEFLON, ARLON, Halogen-free Material

Rang of Finish Baords Thickness : 0.21-7.0mm

Minimum Line Width : 3mil (0.075mm)

Minimum Line Space : 3mil (0.075mm)

Minimum Hole Diameter : 0.10 mm

Finishing Treatment : HASL (Tin-Lead Free), ENIG(Immersion Gold), Immersion Silver , Gold Plating (Flash Gold), OSP, etc.

Thickness Of Copper : 0.5-14oz (18-490um)

E-Testing : 100% E-Testing (High Voltage Testing); Flying Probe Testing

Contact Now

Gold Plating Multilayer Pinted Circuit Boards Standalone Access Controller Audio Extractor

1. Features

1. One Stop OEM Service, Made in Shenzhen of China

2. Manufactured by Gerber File and BOM List from Customer

3. FR4 Material, Meet 94V0 standard

4. SMT, DIP technology suport

5. Lead Free HASL, Environmental Protection

6. UL, CE, ROHS Compliant

7. Shipping By DHL,UPS, TNT, EMS or Customer requirement

2. PCB Technical capability

SMT Position accuracy:20 um
Components size:0.4×0.2mm(01005) —130×79mm,Flip-CHIP,QFP,BGA,POP
Max. component height::25mm
Max. PCB size:680×500mm
Min. PCB size:no limited
PCB thickness:0.3 to 6mm
PCB weight:3KG
Wave-Solder Max. PCB width:450mm
Min. PCB width: no limited
Component height:Top 120mm/Bot 15mm
Sweat-Solder Metal type :part, whole, inlay, sidestep
Metal material:Copper , Aluminum
Surface Finish:plating Au, plating sliver , plating Sn
Air bladder rate:less than20%
Press-fit Press range:0-50KN
Max. PCB size:800X600mm
Testing ICT,Probe flying,burn-in,function test,temperature cycling

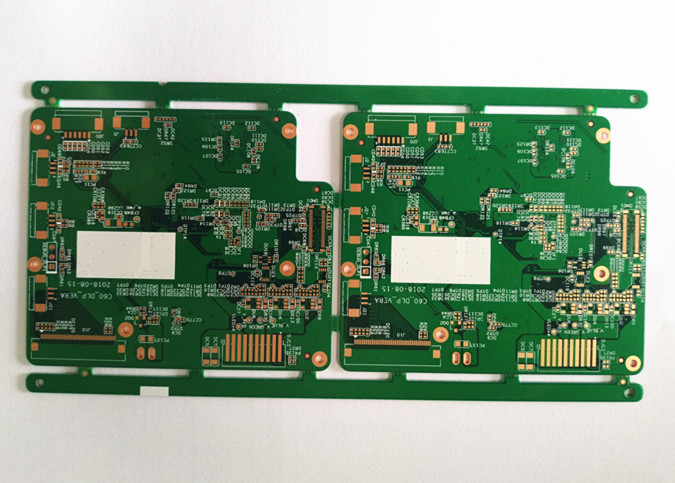

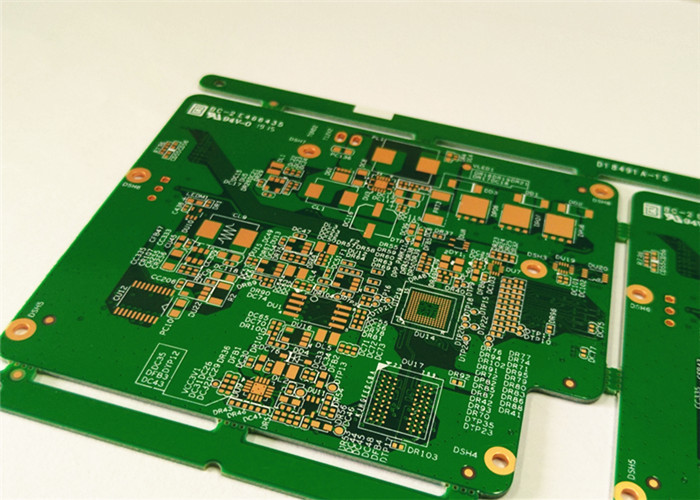

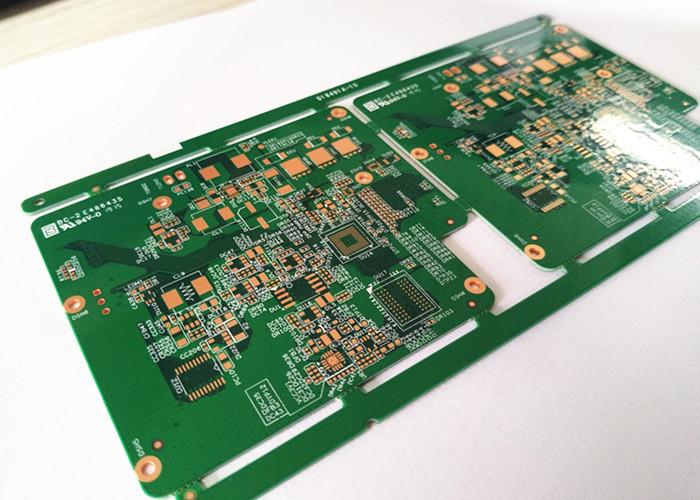

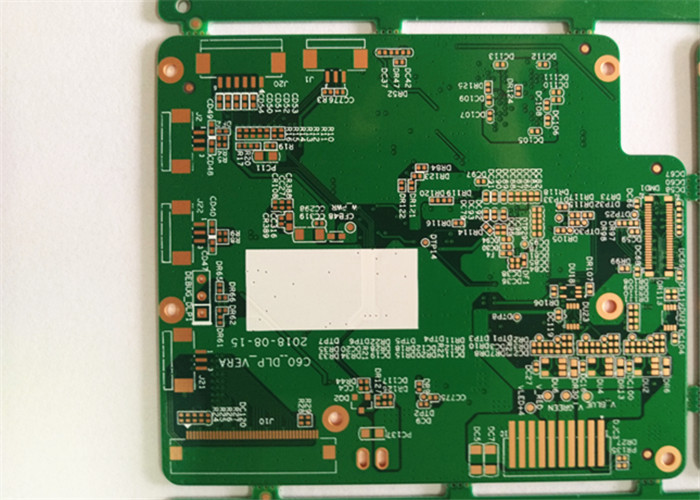

2. PCB Pictures

Gold Plating Multilayer Pinted Circuit Boards Standalone Access Controller Audio ExtractorGold Plating Multilayer Pinted Circuit Boards Standalone Access Controller Audio ExtractorGold Plating Multilayer Pinted Circuit Boards Standalone Access Controller Audio ExtractorGold Plating Multilayer Pinted Circuit Boards Standalone Access Controller Audio ExtractorGold Plating Multilayer Pinted Circuit Boards Standalone Access Controller Audio Extractor
