ENIG Immersion Gold 94V0 Printed Circuit Boards HDI Printed Circuit Boards 600 mm x 1200 mm Electronic Printed Circuit Board

ENIG Immersion Gold 94V0 Printed Circuit Boards HDI Printed Circuit Boards 600 mm x 1200 mm


Detail Specifications:

• Layers: 2 layers
• Material: fr-4
• Copper thickness: 1oz
• Surface Treatment: ENIG immersion gold
• Min drill hole: 0.2mm
• soldmask color: green
• silkscreen color: white

To get a full quotation of the PCB/PCBA, pls provide the information as below:

What KAZ Circuit can do for you:

• PCB prototype/mass production
• Components sourcing accoring to your BOM list.
• PCB Assembly (SMT/DIP..)

Manufacturer Capacity:

Printed circuit boards (PCBs) are the basic components of electronic equipment and are the physical foundation that connects and supports various electronic components. It plays a vital role in the functionality and reliability of electronic systems.

Key aspects of electronic printed circuit boards include:

Layers and composition:
PCBs are typically made up of multiple layers, with the most common being a 2- or 4-layer design.
These layers are made of copper serving as conductive paths and a non-conductive substrate such as fiberglass (FR-4) or other specialty materials.
Other layers may include power and ground planes for power distribution and noise reduction.

Interconnects and Traces:
The copper layer is etched to form conductive traces that serve as pathways for electrical signals and power.
Vias are plated-through holes that connect traces between different layers, enabling multi-layer interconnections.
Trace width, spacing, and routing patterns are designed to optimize signal integrity, impedance, and overall electrical performance.

Electronic component:
Electronic components, such as integrated circuits, resistors, capacitors, and connectors, are mounted and soldered to the PCB.
The placement and routing of these components is critical to ensuring optimal performance, cooling, and overall system functionality.

PCB manufacturing technology:
PCB manufacturing processes typically involve steps such as lamination, drilling, copper plating, etching and solder mask application.
Advanced technologies such as laser drilling, advanced plating, and multi-layer co-lamination are used in specialized PCB designs.

PCB Assembly & Soldering:
Electronic components are placed and soldered onto the PCB either manually or automatically using techniques such as through-hole soldering or surface mount soldering.
Reflow soldering and wave soldering are common automated processes for connecting components.

Testing & Quality Control:
The PCB undergoes various testing and inspection processes such as visual inspection, electrical testing, and functional testing to ensure its reliability and performance.
Quality control measures, such as in-process inspections and design-for-manufacturability (DFM) practices, help maintain high standards in PCB production.

Electronic PCBs are used in a wide variety of applications, including consumer electronics, industrial equipment, automotive systems, medical devices, aerospace and telecommunications equipment, and more. Continuing advances in PCB technology, such as the development of high-density interconnect (HDI) PCBs and flexible PCBs, have enabled the creation of smaller, more powerful, and more energy-efficient electronic devices.

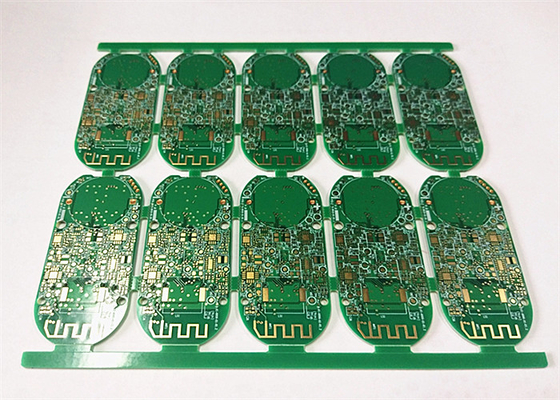

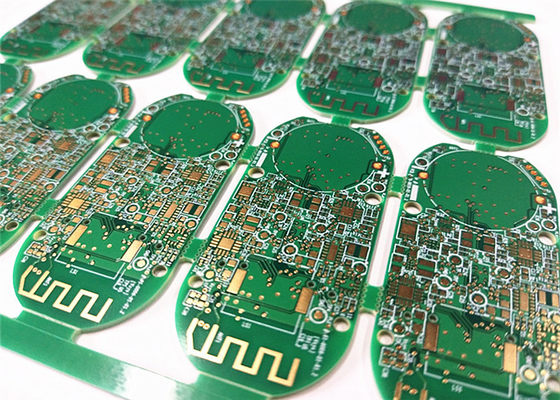

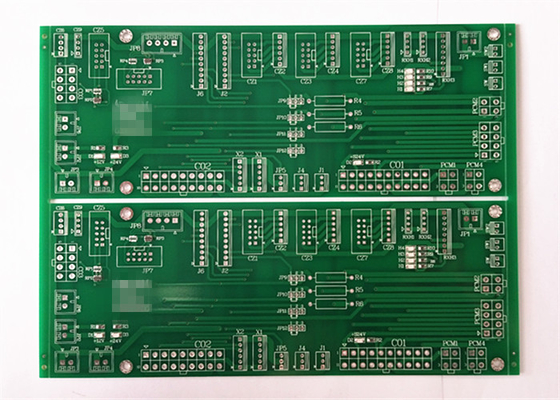

More photoes of 2 layers FR4 1.0mm 1oz Immersion Gold printed circuit board PCB

ENIG 94V0 PCB Board

Immersion Gold 94V0 PCB Board

HDI Printed Circuit Boards

ENIG Immersion Gold 94V0 Printed Circuit Boards HDI Printed Circuit Boards 600 mm x 1200 mm Electronic Printed Circuit Board Images
